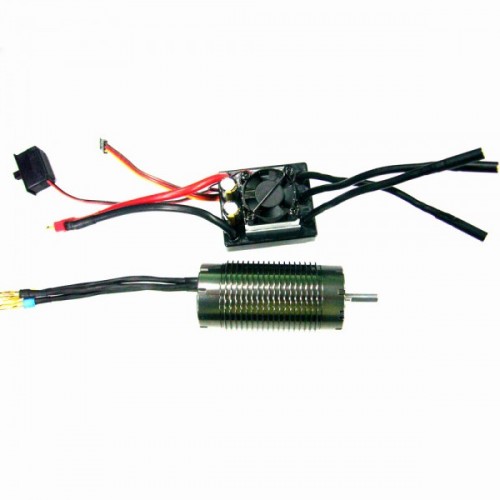

1/8 120A Sensorless Brushless ESC + 14T 1460KV MOTOR CB-00026

1/8 120A Sensorless Brushless ESC + 14T 1460KV MOTOR CB-00026
Brand: INFINITE
Product Code: CB-00026
Availability: In Stock
Price: $119.99
Qty:
   - OR -
Brushless Motor C3977-1460
Sensored/sensorless Sensorless
Turns 14T
KV Value 1460
Poles 2P
No-loading @ 7.2V Current 1.8A ± 0.40
Max Current 90A
Resistance (mΩ) 21.8mΩ±0.5
Battery Range 2S-4S
Operation Temperature -20 to 150C
Max Temperature 150 C
Diameter 39mm
Motor length 77mm
Extend shaft diameter 5mm
Length of extend shaft 20mm
Thickness of lamination 0.2mm/0.35mm
Net Weight
Suitable car scale 1/8'
Suitable ESC 1/8 sensorless



Speed Controller

120A-8th-SL

Sensored/sensorless Sensorless
Continuous Current 120A
Continuous Time
 1min
Peak Current
 720A
Peak Time
 300uS
Voltage 2S-4S
BEC Type Output   Mode S-BEC
BEC Type Output Voltage 6V
BEC Type Output Current 4A
Protection Seature Low Voltage 3.0V/C
Protection Seature Temp. 95+/-5
Size for fan 30X30X10
Weight 140g
Suitable Car
 1/8
Suitable Motor
 DC 1/8 Sensorless
