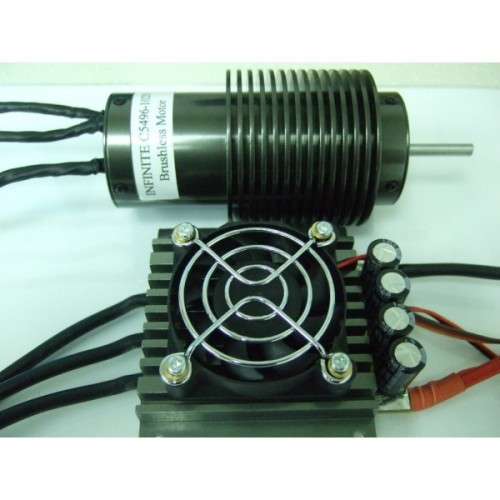

INFINITE 1/5 120A Sensorless Brushless ESC + 2T MOTOR

INFINITE 1/5 120A Sensorless Brushless ESC + 2T MOTOR
Brand: INFINITE
Product Code: CB-00022
Availability: In Stock
Price: $239.99
Qty:
   - OR -
Brushless Motor C5496-1020
Sensored/sensorless Sensorless
Turns 2T
KV Value 1020
Poles 2P
No-loading @ 7.2V Current 3.35A ± 0.20
Max Current 100A
Resistance (mΩ) 7.6 ±0.8
Battery Range 5S-10S
Operation Temperature -20 to 150C
Max Temperature 150 C
Diameter 54mm
Motor length 96mm
Extend shaft diameter 5mm
Length of extend shaft 30.5mm
Thickness of lamination 0.2mm
Net Weight
Suitable car scale 1/5'
Suitable ESC 1/5 sensorless



Speed Controller 120A-5th-SL
Sensored/sensorless Sensorless
Continuous Current 120A
Continuous Time
 1min
Peak Current
 250A
Peak Time
 300uS
Voltage 5S-10S
BEC Type Output   Mode /
BEC Type Output Voltage /
BEC Type Output Current /
Protection Seature Low Voltage 3.0V/C
Protection Seature Temp. 95+/-5
Size for fan 30X30X10
Weight 310g
Suitable Car
 1/5
Suitable Motor
 DC 1/5 Sensorless
