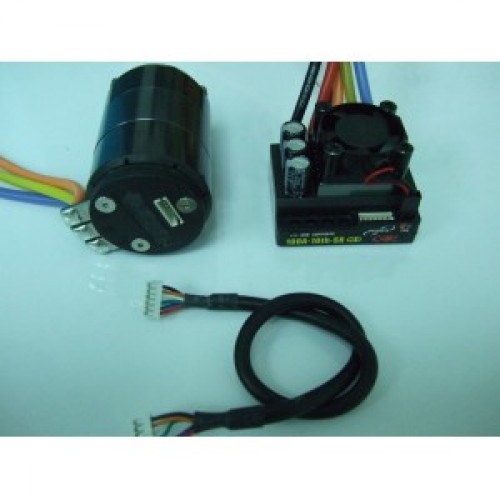

INFINITE 1/10 100A Sensored Brushless ESC + 13.5T MOTOR CB-00006

INFINITE 1/10 100A Sensored Brushless ESC + 13.5T MOTOR CB-00006
Brand: INFINITE
Product Code: CB-00006
Availability: In Stock
Price: $89.99
Qty:
   - OR -
INFINITE 1/10 100A Sensored Brushless ESC + 135T 2400KV MOTOR Brushless Motor C3554-2400 Sensored/sensorless Sensored Turns 13.5T KV Value 2400 Poles 2P No-loading @ 7.2V Current 1.8A±0.3 Max Current 53A Resistance (mΩ) 28.5mΩ±1.4 Battery Range 2S-3S Operation Temperature -20 to 150C Max Temperature 150 C Diameter 35.8mm Motor length 54mm Extend shaft diameter 3.175mm Length of extend shaft 15.7mm Thickness of lamination 0.2mm/0.35mm Net Weight Suitable car scale 1/10' Suitable ESC 1/10 sensored Speed Controller 100A-10th-SR Sensored/sensorless Sensored Continuous Current 100A Continuous Time 1min Peak Current 540A Peak Time 300uS Voltage 2s-3s BEC Type Output Mode LDO BEC Type Output Voltage 5V BEC Type Output Current 2A Protection Seature Low Voltage 3.0V/C Protection Seature Temp. 95+/-5 Size for fan 25X25X10 Weight 80g Suitable Car 1/10 Suitable Motor DC 1/10 Sensored Motor
