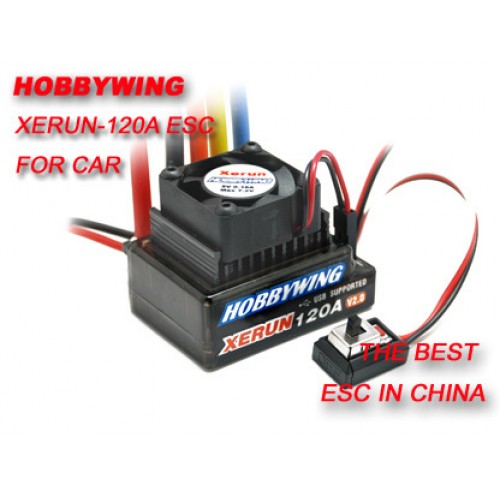

XERUN BRUSHLESS SYSTEM 120A V2 ESC

XERUN BRUSHLESS SYSTEM 120A V2 ESC
Brand: HOBBYWING
Product Code: XERUN-120A
Availability: In Stock
Price: $138.88
Qty:
   - OR -
1.1 Output: Continuous current 120A, burst current 760A.
1.2 Input: 4-9 cells NiMH/NiCd or 2-3 cells LiPo. Note1
1.3 BEC Output: 5.75V@3A linear mode built-in BEC.
1.4 Resistance: 0.0003 Ohm.
1.5 Motor Supported: Sensored brushless / Sensorless Brushless.
1.6 Suitable Brushless Motor:
With 2 cells Lipo or 4-6 cells NiMH, 1/10 on-road: >=3.5T, 1/10 off-road: >=5.5T
With 3 cells Lipo or 7-9 cells NiMH, 1/10 on-road: >=5.5T, 1/10 off-road: >=8.5T
1.7 Suitable Car:
1/10, 1/12 on-road or off-road cars / trucks for competition race.
1/10, 1/8 rock crawler.
1.8 Size: 43mm(L) * 36mm(W) * 33mm(H).
1.9 Weight: 65g(Without wires)

Note1:
For brushless motor, the ESC supports up to 9 cells NiMH or 3 cells Lipo battery.
For 4-6 cells NiMH or 2 cells Lipo: You need not change the cooling fan coming with the ESC;
For 7-9 cells NiMH or 3 cells Lipo: You must change the standard cooling fan because it cannot work with such a high voltage, so please choose a high voltage fan or supply the fan from the receiver (+6V)
