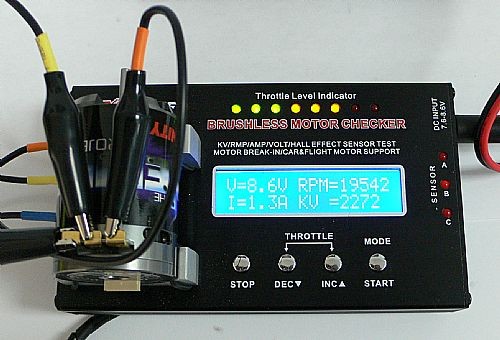

EXTREM BRUSHLESS MOTOR CHECKER BMC-01

Brand: RC9394
Product Code: BMC-01
Availability: In Stock

Price: $99.99

Qty:

- OR -

Description Reviews (0)

Features:

1. Brushless Motor Checking KV Measurement RPM Measurement Ampere Measrement

2. Hall Effect Sensor Test Brushless Motor With Sensors Only

3. Motor/Car Diff Break-in Fix Voltage form 2.5V to 7.2V or 10 Steps Cycle with Variable Voltage Setting from 2.5V to 7.2V

Specifications:

Input Voltage:7.4-8.6V (Suggested to use a 7.4V 2S1P LiPo Battery)

LCD Display Screen: Blue Backlight background, white text, 16 characters x 2 lines

Dimension:136.5mm x 80.6mm x 47mm Net Weight: 290g

Supported Motor: Sensor or Sensor-less Brushless motor.

(a) Standard 540 size RC car motor:2.5 turn or over, 2 Poles(In-runner motor)

(b) Flight Motor: support sensor-less brushless motor, 6 poles(Out-runner motor) Current Drawn less than 18A at 8.4V without loading.

Includes/Requires:

Includes:

1 x BMC-01 with accessories.

1 x English manual.
