INFINITE 1/36 5A Brushless ESC + 32T MOTOR CB-00020

INFINITE 1/36 5A Brushless ESC + 32T MOTOR CB-00020
Brand: INFINITE
Product Code: CB-00020
Availability: In Stock
Price: $39.99
Qty:
   - OR -

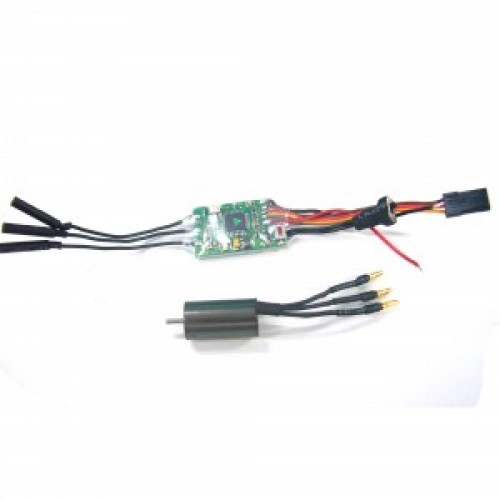

INFINITE 1/36 5A Brushless ESC + 32T 8750KV MOTOR for LOSI MICRO-T

Brushless Motor C1222-8750
Sensored/sensorless Sensorless
Turns 32T
KV Value 8750
Poles 2P
No-loading @ 7.2V Current 0.78A ±0.1
Max Current 7A
Resistance (mΩ) 19.82mΩ±0.8
Battery Range 2S
Operation Temperature -20 to 150C
Max Temperature 150 C
Diameter 12mm
Motor length 22mm
Extend shaft diameter 1.5mm
Length of extend shaft 5mm
Thickness of lamination 0.35mm
Net Weight
Suitable car scale 1/36'
Suitable ESC 1/36 sensorless



Speed Controller 5A-36th
Sensored/sensorless Sensorless
Continuous Current 5A
Continuous Time
 1min
Peak Current
 7A
Peak Time
 500uS
Voltage 2S
BEC Type Output   Mode BEC
BEC Type Output Voltage 5V
BEC Type Output Current 1A
Protection Seature Low Voltage 3.0V/C
Protection Seature Temp. 95+/-5
Size for fan /
Weight 10g
Suitable Car
 1/36
Suitable Motor
 DC 12 Motor
