Home » ACCESSORY » MOTOR & ACC. » Motor » 1/18th Motor » INFINITE 1/18 25A Sensorless Brushless ESC + 12T 5400KV MOTOR

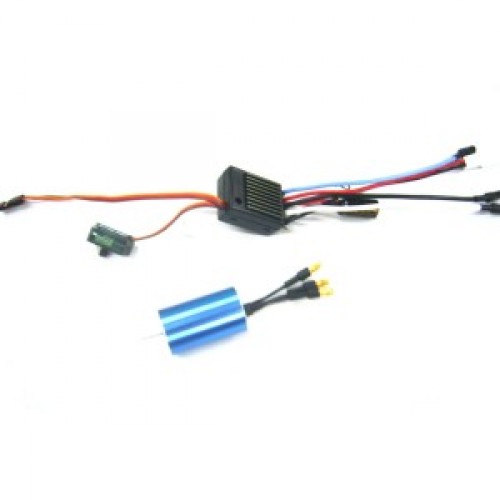

INFINITE 1/18 25A Sensorless Brushless ESC + 12T 5400KV MOTOR

INFINITE 1/18 25A Sensorless Brushless ESC + 12T 5400KV MOTOR
Brand: INFINITE
Product Code: CB-00018
Availability: In Stock
Price: $49.99
Qty:
   - OR -
Brushless Motor C2236-5400 Sensored/sensorless Sensorless Turns 12T KV Value 5400 Poles 2P No-loading @ 7.2V Current 2.67A ± 0.20 Max Current 18A Resistance (mΩ) 69.18mΩ±2.0 Battery Range 2S-3S Operation Temperature -20 to 150C Max Temperature 150 C Diameter 22mm Motor length 36mm Extend shaft diameter 2mm Length of extend shaft 11mm Thickness of lamination 0.35mm Net Weight Suitable car scale 1/18' Suitable ESC 1/18 sensorless Speed Controller 25A-18th -SL Sensored/sensorless Sensorless Continuous Current 25A Continuous Time 1min Peak Current 60A Peak Time 300uS Voltage 2S-3S BEC Type Output Mode LDO BEC Type Output Voltage 5V BEC Type Output Current 2A Protection Seature Low Voltage 3.0V/C Protection Seature Temp. 95+/-5 Size for fan / Weight 45g Suitable Car 1/18 Suitable Motor 1/18 Sensorless
